Description:

With the Exmark Turf Tracer S-Series commercial walk-behind mower, you can choose from a variety of rugged engines. Then, match that power to cutting decks in 36-, 48-, and 52-inch widths. In whatever configuration you choose, you’ll get our patented Enhanced Control System (ECS) for ultimate operator comfort. Which translates to day-long operator productivity.

Looking for even larger, more powerful walk-behind mowers? Check out our Turf Tracer X-Series.

Mower Deck Widths: 36" 48" 52"

Specification:

Engine:

Brand: Kawasaki
Model: FS600V
Displacement: 603 cc
Series: V-Twin
Speed: 3,600 rpm
Fuel System: Carbureted
Fuel Type: Gas Carbureted
Fuel Capacity: 5 gallons (18.9 L)
Air Filter: Standard Engine Manufacturer's air filter
Engine Spec: AS26-R

Transmission:

Brand: Hydro-Gear
Type: Hydrostatic
Speeds: Infinitely Variable
Drive: Hydro-Drive
Drive Description: Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54 cm) tapered shafts

Tires:

Front Caster Tires: 9 x 3.5-4, smooth-tread, semi-pneumatic
Drive Tires: 16 x 7.5-8, 4-ply Turf Master®

Electrical:

Voltage: 12 volts
Battery: 15-amp alternator

Deck:

Width: 48 inches
Style: Floating Deck
Style Description: Full-floating UltraCut Series 3; side discharge standard, with molded discharge chute; optional bagging or mulching
Construction: 10-gauge top, formed and continuously seam welded; 7-gauge side skirt; 7-gauge welded spindle mounting locations
Cutting Heights: 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments
Blade Tip Speed: Approximately 18,500 fpm
Blades: 3 blades, 16.25" length
Deck Lift: Manual lift with hairpin from hole to hole for position adjustment

Drive:

Type: Hydro-Drive
Description: Self-propelled; rear-wheel gear-driven
PTO Engagement: Electromagnetic 105 ft-lbs clutch
Drive Wheel Release: Allows unit movement without engine running

Safety:

Package: Operator Presence Controls (OPC); speed control lever must be in neutral and blades disengaged to leave operator’s position without stopping engine

Parking Brake:

Type: Lever-actuated mechanical compression

Additional Features:

Standard Features: Engine hour meter
Carb Compliant: No
Fuel Indicator: None

Dimensions:

Width: 59.5 in. (151.1 cm)
Height: 42.0 in. (106.7 cm)
Length: 73.7 in. (187.2 cm)
Curb Weight: 586 lbs

Width	Weight	Height	Length
59.5 Inch	586 Pounds	42 Inch	73.7 Inch

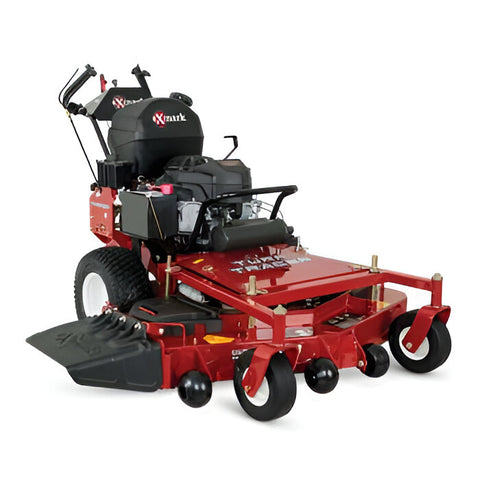

Exmark Turf Tracer S-Series TTS600CKA483E0
