Description:

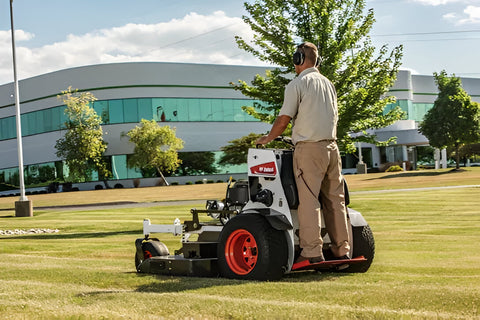

Get stand-up performance with the ZS4000 zero-turn stand-on mower. The ZS4000 is equipped with commercial-grade features including the bullnose AirFX™ cutting system, a low center of gravity and tool-free controls – all designed to let you maneuver through tough obstacles with total confidence. Equipped with a powerful Kawasaki® FX series engine, this zero-turn mower also boasts a heavy-duty drive system for quick ground speeds.

Featuring Air-Gap baffles and vacuum seals, the ZS4000’s AirFX cutting deck increases lift on every blade of grass for unmatched precision. A 36-inch DuraDeck™ cutting system is also available.
Command unmatched control and response from ergonomic, tool-free controls with adjustable tracking that put a whole new level of zero-turn, stand-on mowing control right at your fingertips.
When it comes to maneuvering around obstacles or tight spaces, the ZS4000 has an intuitive operator-station design that provides a superior “center of mass” stability that makes you feel like you’re one with the machine.

Features:

Stability. Agility. Profitability. With a compact size, extra ground clearance and large drive tires, the ZS4000 gets over and around obstacles and on to the next job.

Vibration-dampening platform technology

Hydrostatic transmission delivers powerful torque, smooth power output

Easy access maintenance

Fuel capacity up to 6.5 gallons

Featuring the AirFX™ Cutting Deck

Specification:

Mower Deck

Deck: DuraDeck™ Cutting System
Width: 36 in
Cutting Height: 1.5-4.5 in
Blade Tip Speed: 17,600 ft/min
Discharge Chute: Flexible Molded Polymer

Engine

Engine Model: Kaw FX600V
Displacement: 603 cm³
Fuel Capacity: 5.1 gal
Horsepower: 19 hp

Performance

Weight: 800 lb

Transmission

Transmission Type: HG ZT-3100 Hydrostatic Transaxles
Pump Displacement: 10 cm³
Oil Capacity: 4 qt_liq_us

Speed

Forward Speed: 9 mph
Reverse Speed: 3.5 mph

Electrical

Charging System: 15 A
Clutch: 125 ft·lbf

Frame

Front/Rear: Welded 7-gauge Steel; 1.5 x 2.5 in Steel Tubing
Length: 64 in

Wheels

Drive Wheel: 20 x 8.0-10
Front Caster Wheel Size: 11 x 6.0-5
Caster Arm Attachment: Bolt-On

Seat

Seat: Operator Pad - tethered, removable
Fore-Aft Adjust: Flip Up and Latch

Width	Weight	Height	Length
36 Inch	800 Pounds	0 Inch	64 Inch

Bobcat ZS4000 Zero-Turn, Stand-On Mower (9994001)
